Research and development
Custom UAS equipment manufacturing
Designed solutions for various applications

Development starts by understanding your missions – we create drone solutions to meet your needs, enhance efficiency, safety and margins. We also design new technology with ease of use in mind, team training and process implementation, unique to your company.

PRODUCT DESIGN

  • Using AS9100D standards for product design and manufacturing
  • Made for durability, performance, and manufacturability
  • Designs made to accommodate specific requests

PRODUCTION PLANNING

  • Easy logistics for decreased production cost with highest quality materials

  • Evaluating, fabricating and applying the design to verify profitability, quality, and production rate

  • Quality management system from AS9100D to formulate manufacturing plan

CONTRACT ENGINEERING

  • Ultramodern engineering technologies to present the most profitable and efficient combination of quality and service

  • Unique Infrastructure of accessories, tools and machinery to lower production cost

  • Training, Certifying and Managing Engineers to provide cutting edge service

  • Web-Based Project Management System to provide secure and simple communication between the company and contractors

EXECUTION

  • Methodical work order for quick execution of planned production
  • AS9100D standards allow for the best management of production
  • Examination and field testing of product to guarantee highest quality

DRONES

At AD, safety, quality and performance is never rushed. We have standardized our drone missions and processes with our specialized systems. Integrating highly specialized sensors also positions our drone systems above other basic drones in the commercial space.


UAS: AD-VW1

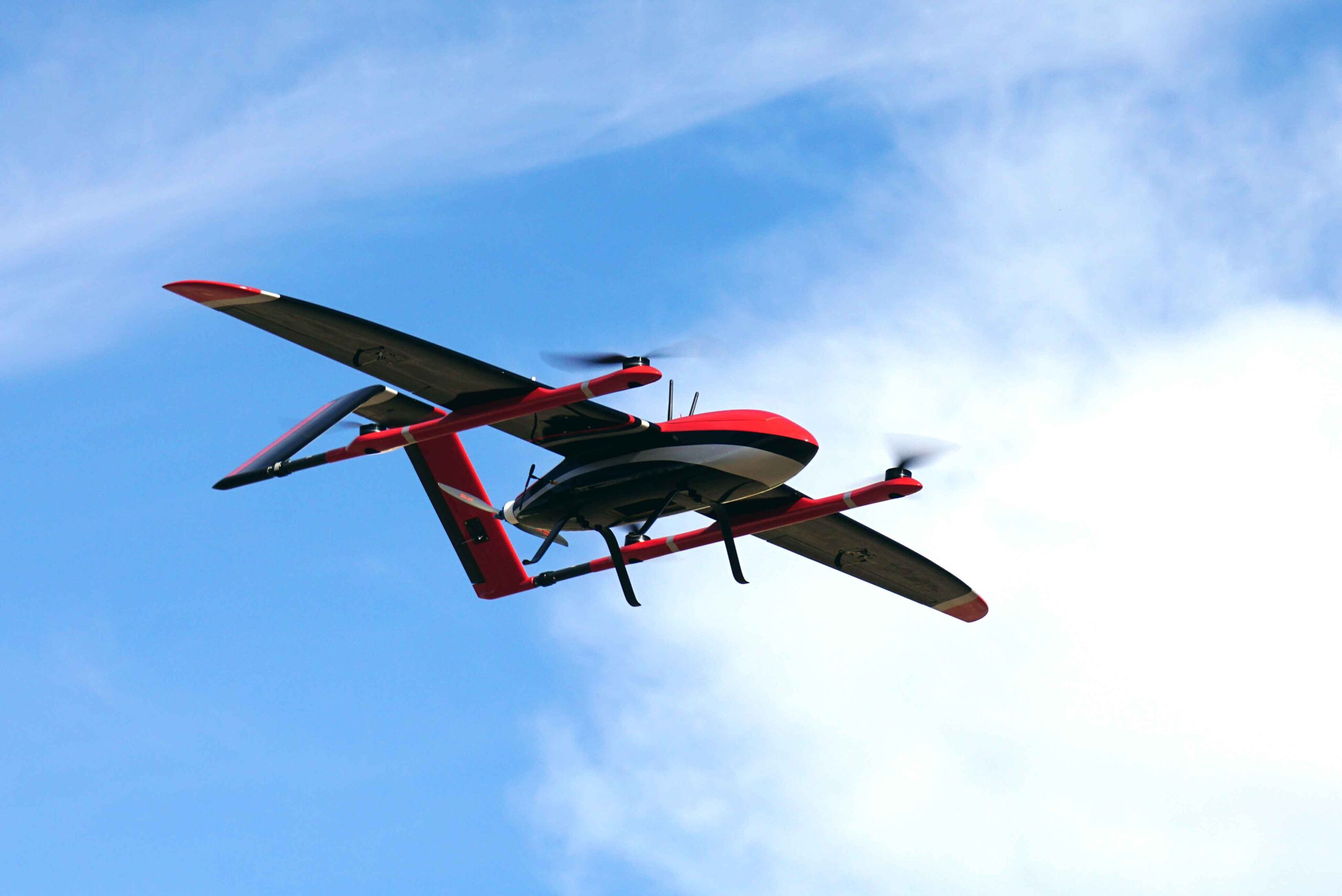

The AD-VW1 is a vertical take-off and landing (VTOL) fixed-wing UAS of carbon fiber and composite materials. Made for efficient, long-distance flying, equipped with an orthographic camera, oblique camera, and elctro-optical pod for precision surveying or mapping missions.

OTHER SPECIFICATIONS

Drone assemble time

5 min (by a single operator)

Drone disassemble time

10 min (by a single operator)

Max. Wind resistance

Level 6

Working temperature

-20~60°

IP level

IP56

AIRCRAFT SPECIFICATIONS

Type

VTOL: Vertical Take-Off and Landing

Body material

Carbon fiber and composite material

Wingspan/body length

2500 mm/ 1486 mm

Net weight

5.5 kg

Max. Takeoff weight

12 kg

Max. Payload weight

1~2 kg

Max. Climb speed

7 m/s

Efficiency cruise speed

90 Km/h

Max. Flight speed

126 Km/h

Flight time

50 min*

Max. Flight distance

200 km

Control radius

15 km

Max. Altitude AMSL

5000 m

VTOL switch altitude

120 m

Positioning accuracy

1cm±1ppm

Positioning system

RTK+PPK

RTK/PPK update frequency

100Hz

Others

Auto takeoff and landing, autopilot, black box function

*Flight times vary based on UAS characteristics, payloads and/or weather conditions.


UAS: AD-F

The AD-F is an industrial quadcopter developed specifically for commercial industries. Its foldable and compact features make it easy to mobilize with interchangeable custom payloads.

AIRCRAFT SPECIFICATIONS

Model

AD-F

Type

Quadrotor

Dimensions

(L)920mm x (W)1470 x (H)500mm

Transit Case Size

670x535x330 mm

Motors

6010

Propellers

21 inch foldable

Battery

22000 mAh Lithium Polymer

Main Body Weight

3.7 kg

Max Take-Off Weight

9 kg

Max Payload Capacity

3 kg

Max Flight Time

45 min*

Flight Speed

0~15 m/s

Ascending Speed

0~4 m/s

Max Altitude

5 km

Video Transmission Range

3 km

Datalink Range

3 km

Wind Resistance

Level 5 (10 m/s)

Operating Temperature

-4° to 140°F (-20°C to 60°C)

Working Humidity

10% – 90% No condensation

IP Level

IP54

EMI

100A/m (Power frequency magnetic field)

Supported Payloads

200+, Plug-and-Play systems

*Flight times vary based on UAS characteristics, payloads and/or weather conditions.


UAS: AD-H

The AD-H is a high performance industrial hexacopter drone, made for long endurance and heavy payload capacity. Made up of carbon fiber and compound materials, the body is lightweight, modular and portable with detachable arms. Its plug-and-play payload connector is ideal for hot swapping a variety of gimbals and payloads.

AIRCRAFT SPECIFICATIONS

Model

AD-H

Type

Hexacopter

Dimensions

(L)2280mm x (W)2070mm x (H)620mm

Motors

KV170

Propellers

28 inch carbon fiber

Batteries

2*22000 mAh LiPo 6S

Main Body Weight

12.12 kg (w/ 2 batteries)

Max Take-Off Weight

19.12 kg

Max Flight Time

50 min*

Flight Speed

0~18 m/s

Ascending Speed

0~5 m/s

Max Altitude

4.5 km ASL

Video Transmission Range

3 km

Datalink Range

3 km

Wind Resistance

8 m/s

Hovering Accuracy

Vertical ±0.5m, Horizontal ±1.5m

Max Angular Velocity

300°/s Pitch, 150°/s Yaw

Max Pitch Angle

25°

Operating Temperature

14° to 104°F (-10°C to 40°C)

Supported Payloads

200+, Plug-and-Play systems

Groundstation

15 in. GCS S85, PC, or AIO

*Flight times vary based on UAS characteristics, payloads and/or weather conditions.


UAS HARDWARE & UPGRADE SPECIFICATIONS

CONTROLLERS & SENSORS

Mount Carbon Fiber Mount Plate (For custom payloads)
Controller 1 Standard Futaba Controller
Gimbal Interchangeable gimbal adapter
Controller 2 All-In-One Industrial Radio Controller
EO (Electro-Optical) Camera 20 MP Still pictures; 4K video @ 24 FPS, 1080P video @ 50 FPS, 20x Zoom in Photo mode and 4K video,
40x Zoom in 1080p video mode with Image stabilization
Infrared Camera FLIR Vue Pro R 640p 30Hz
GCS Industrial Ground Station w/ built in transmitter unit, receiver unit, remote control unit and 15 inch display screen

OTHER SPECIFICATIONS

GPS Redundant GPS System
Flight Controller Ardupilot / Pixhawk (made in USA)
Altitude Maximum operating altitude - AMSL of 4500 m
Range Communication link capability of 2km(2.4GHz)or 5km(900MHz)
Weather Rain Conditions (IPX5); Dust Resistant
Spare Parts Set of Spare Propellers and Batteries; Industrial Charger

RADIOS

P-GCS AIO

The Portable Ground Control Station is an all-in-one handheld radio with on-screen image display for mission planning, payload control, images, and more. A reserved UART serial port can combine with RTK, including 4G single hand operations.

Model

P-GCS Radio

Size (L*W*H)

319x143x52mm

Weight

1.5kg

Material

Aluminum alloy

Computer

Android 7.1, six-core processor

Screen

7 in. touch screen

Battery

11.1V, 8000mAh

Video output

HDMI

Transmission distance

5km

Working temperature

-20°C~60°C


GCS

The GCS (Ground Control Station) is compatible with the AD-VW1, AD-F, and AD-H. Its aluminum alloy and rubber casing is fireproof and sealed to keep electrical components away from rain and dust.

Model

GCS

Size (L*W*H)

307x407x102mm

Weight

7kg

Material

Aluminum alloy, rubber

Computer

Intel Core i5, 8GB storage, 128GB SSD, 12.1 inches LCD, 1500 nit luminance

Screen

15.6 in, 1080*1920

Battery

4S lithium battery

Video output

HDMI

Transmission distance

10km

Working temperature

-20°C~60°C

Storage temperature

-30°C~70°C

SENSORS & PAYLOADS

  • X40 Zoom Camera Gimbal

  • X40 Zoom Camera Payload Gimbal

X40 ZOOM GIMBAL

Size 190.97 X 166.83*130mm
Weight 850g
Assembly Detachable Quick Release
Lens 40x zoom; F/1.8~3.6 aperture
Video resolution 4K:8.29 million, MPEG-4
Pixel resolution 25.60 million, JPG

SONY A7RII GIMBAL

Size 186 X 215 X 222 mm
Weight 1500g
Assembly Detachable Quick Release
Lens Sony SEL2870 Zoom Lens for Sony E-Mount - 28mm-70mm - F/3.5-5.6
Video resolution Internal UHD 4K Video & S-Log2 Gamma, 5-axis SteadyShot INSIDE, XGA OLED Tru-Finder
Pixel resolution 42.4 MP
ISO 102400

*SONY is a trademark of Sony Corporation.


THERMAL FLIR VUE PRO GIMBAL

Size 122 X 158 X 87 mm
Weight 470g
Assembly Detachable Quick Release
Lens 19mm
Thermal Imager Uncooled VOx Microbolometer
Resolution 640×512
Rotation Range

Pitch:-130°-50°, Roll: -75°-75°, Head:士175°

*FLIR is a trademark of FLIR Systems, Inc.


EO + IO DUAL GIMBAL CAMERA

Size 138.2 x 149.5 x 117.8 mm
Weight 690 g
Imager Sensor SONY® 1/3 Exmor R CMOS
EO Optical zoom 10x optical zoom, F3.2~33.6mm, object tracking
Thermal Imager 640 x 480; 19mm lens; 25Hz
Pixel 4.08MP
Output

1080p Micro HDMI / IP / SDI

*SONY® and the Sony logo are trademarks of Sony Corporation.


  • Slantrange 4P Series Face Left

SLANTRANGE MULTISPECTRAL SENSOR

Size

14.6 x 6.9 x 5.7 cm (Vegetation Sensor)

8.1 x 3.5 x 1.7 cm (Ambient Illumination Sensor)

Weight 350g

Removable SD Card Storage

64 GB (2 hours)

Sensor Type

Si CMOS

Spatial Resolution

4.0 cm (4P), 2.2 cm (4P+); GSD @100 m AGL
Positioning & Pointing

GPS / IMU with EKF

Spectral Channels

6

Processor Speed

Quad-Core 2.26 GHz

On-Board RAM

2 GB

Spectral Range

Band positions are selectable at time of order between 410 - 950 nm. Conditions apply.



CUSTOM UAS

TRAINING UAS: AD1-V2

Originally manufactured as our flagship platform, the AD1-V2 is only used for specialty flight training and curriculum programs. The unique foldable arms feature allow this fully carbon fiber frame to become durable, versatile, agile and portable, equipped with an open source Pixhawk (made in USA) flight controller.

This unit is only available on a limited case by case basis.


AIRCRAFT SPECIFICATIONS

Model

AD1-V2

Type

Quadcopter Training System

Dimensions

610 mm; diagonal motor-to-motor

Propellers

15 inch carbon fiber

Batteries

7000 mAh LiPo

Max Take-Off Weight

5.25 lbs (2.3kg)

Max Flight Time

10-40 min (dep. on configuration, weight and battery)

Max Altitude

2,000 ft

Cruising Speed

34 mph (15 m/s)

Wind Resistance

22 mph (10 m/s)

Video Transmission Range

1 mi (1.6 km)

Flight Modes

Altitude Hold GPS / Loiter / Position Hold Auto Mode (Ground Station Waypoint System Auto-Pilot Mode)

Supported Payloads

GoPro Hero 3, 4, 5, 6, or 7 Black; GoPro Hero 2018; FLIR Vue Pro Thermal; FLIR Duo Thermal/HD Camera; Sony RX100; small multi-spectral sensor

Groundstation

15 in. GCS S85, PC, or AIO



CUSTOM DRONES

Development starts by understanding your missions – we create drone solutions to meet your needs, enhance efficiency, safety and margins.

We can also design, globally source materials, locally assemble and quality test, train your team and process a customize an integration process unique to your company or organization.

Inquire
